SF 6 Circuit Breaker Outdoor Type

Providing you the best range of sf-6 circuit breaker outdoor type, sf6 breaker switchgear and vcb sf6 outdoor circuit breaker with effective & timely delivery. SF6 Circuit Breakers are a type of Outdoor Circuit Breaker used for Power Circuit Breaking. There are several different types of SF6 Circuit Breakers, including Live Tank and Dead Tank models. They are used in power distribution to regulate and safeguard the lines, as well as transformers, rectifier units, capacitor banks, and other equipment. They don't produce operating overvoltages because of the autopuffer breaking method. As a result, they are also excellent candidates for retrofitting in situations where the insulating materials used in the plant may be vulnerable to dielectric stresses.

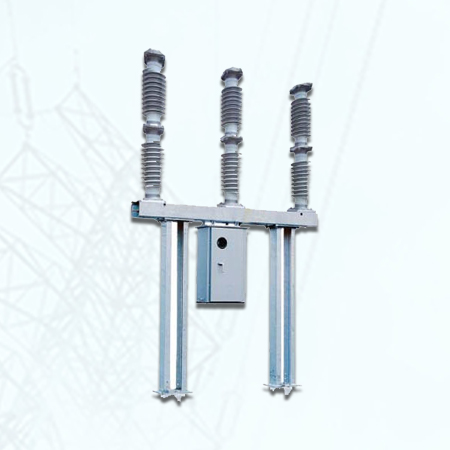

SF6 Circuit Breaker

SF-6 Circuit Breaker Outdoor Type

Minimum Order Quantity 1 Unit
Rated current 400A UPTO 4000A
Poles Number 3 Pole
Rated short circuit breaking capacity 13.1KA UPTO 40KA
Classification EREVA ABB CROMPTON SCHNEIDER SIEMENS L&T, Type D, Type C, Type B
Power 3.3KV UPTO 400KV
Rated power 33kV
Type SF6 gas-insulated
Current 0-4000 A
Approx. Price ₹75,000 / Unit

With highly driven technical excellence, we have been able to offer our clients with world-class SF-6 Circuit Breaker Outdoor Type

SF6 Breaker Switchgear

Minimum Order Quantity 1 Unit
Rated current 630A 1250A 1600A 2000A 2500A 3000A 4000A
Current Rating (In Amps) 630A 1250A 1600A 2000A 2500A 3000A 4000A
Phase 3 PHASE 1 PHASE
Number Of Poles 3 POLES 1 POLES
Frequency (Hz) 50
Automation Grade Automatic
Model Number NWE
Brand EREVA ABB CROMPTON SCHNEIDER SIEMENS L&T
Coil Resistance (ohm) 24V DC 110V DC 220V DC
Pole Weight (kg) 250KG UPTO 500KG
Humidity (%) 99%
Cable Size (mm) BASS
Shell Material MS
Insulated SF6
Rated power 11KV 22KV 33KV 66KV 132KV 220KV 400KV
Approx. Price ₹2.85 Lakh / Unit

With immense market knowledge, we have been able to provide optimum quality 22 Kv Outdoor SF6 Breaker Medium Voltage Switchgear.

VCB SF6 Outdoor Circuit Breaker

Minimum Order Quantity 1 Unit
Rated Current 1250A & 1600A & 2000A 2500A & 3150A
Poles Number 3 Pole, 1 Pole
Power 11kV AND 33kV PC VCB
Classification Type C, Type D, Type B
Rated short circuit breaking capacity 25kA & 31.5kA & 40kA
Material MS
Brand EREVA ABB CROMPTON SCHNEIDER SIEMENS L&T
Approx. Price ₹2.85 Lakh / Unit

Features :

  • 12 NC Auxiliary Switch
  • Motor changes the closing spring in less than 15 secs
