Vacuum Circuit Breaker
Our product range includes a wide range of vacuum circuit breaker and vcb outdoor.
Our product range includes a wide range of vacuum circuit breaker and vcb outdoor.
Minimum Order Quantity | 1 Unit |
---|---|
Power | 3.3KV 6.6KV 11KV 33KV |
Rated Current | 630,1250A 1600A 2000A 2500A 4000A |
Brand | ABB CROMPTON SCHNEIDER SIEMENS L&T |
Material | MS |
Type of breaker | VCB PANEL |
Rated bus bar current | 630,1250A 1600A 2000A 2500A 3150A |
Rated voltage | 11kV 22kV 33kV |
Short time withstands current | 16kA,26.3kA |
Approx. Price | ₹6.8 Lakh / Unit |
In order to retain remarkable position in this industry, we are providing a wide array of 11Kv HT Vacuum Circuit Breaker
Brand | Ereva |
---|---|
Rated Frequency | 50 Hz |
Power source | Electric |
Approx. Price | ₹2.9 Lakh / Unit |
We are the leading supplier of VCB OUTDOOR made available to our clients at competitive prices.
It is a compact, reliable switching & protection solutions for MV distribution network. The product is tested to the quality standards as per IEC 62271 - 100, 200, IS: 13118 standards. The truck is of same pedigree for the entire range that ensures standardization& ease for operator. The performance and reliability of the VCB has increased multi-fold with the compliance of M2 Class - extended mechanical endurance. C2 class – totally restrike free and E2
It is a highly reliable product combined with positive safety interlocks. The product comes with compartmentalized construction and uses non hygroscopic epoxy molds for a long life. It Delivers trouble free operation with enhanced reliability as tested for class E2, C2 & M2. The product is tested to the quality standards as per IEC 62271 - 100, 200, IS: 13118 standards.

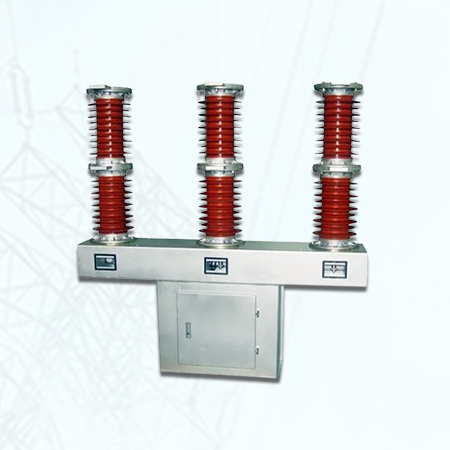

The product is specially designed for outdoor application with rated voltage of 11 kV to 36 kV. Over the years, the product has improved for sense of satisfaction over reliability & safety. The performance and reliability of the PCVCB has increased multi fold with the compliance of M2 Class – Extended Mechanical Endurance, C2 Class – Totally re-strike free and E2 Class – Extended Electrical Endurance.

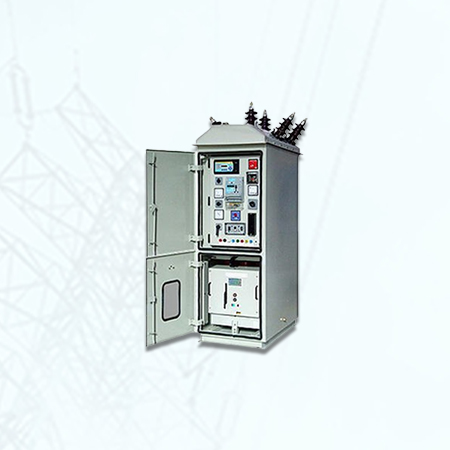

The KIOSK is specially designed for unmanned substations in the Outdoor distribution network. It is a standalone vacuum switchgear system with built-in self-driven control supply for self-tripping and closing of VCB. The product is well equipped for metering, control, protection and SCADA compatibility.The KIOSK is specially designed for unmanned substations in the Outdoor distribution network. It is a standalone vacuum switchgear system with built-in self-driven control supply for self-tripping and closing of VCB. The product is well equipped for metering, control, protection and SCADA compatibility. Roof bushing type with incoming and outgoing - 11kV & 33kV Line up type with incoming through bottom, rear / side cable entry & outgoing through bus bar / cables -11kV & 33kV The performance and reliability of the PCVCB has increased multi fold with the compliance of M2 Class – Extended Mechanical Endurance, C2 Class – Totally re-strike free and E2 Class – Extended Electrical Endurance.
It is a highly reliable product combined with positive safety interlocks. The product comes with compartmentalized construction and uses non hygroscopic epoxy molds for a long life. It Delivers trouble free operation with enhanced reliability as tested for class E2, C2 & M2. The product is tested to the quality standards as per IEC 62271 - 100, 200, IS: 13118 standards.
SF6 insulated ring main unit range includes fully extensible and non-extensible options for secondary distribution applications up to 33 kV.SF6 insulated ring main unit range includes fully extensible and non-extensible options for secondary distribution applications up to 33 kV. Ring Main Units (RMUs) are all suitable for both indoor and outdoor locations and are designed to operate in the most extreme environmental conditions. The units are compact, flexible and easy to operate and install. The RMU is fully weatherproof for outdoor use, has a long service life and requires virtually no maintenance in the most extreme conditions.
